•The product is made of aluminum alloy material
•Can bear a maximum door weight of 160KG
•The maximum opening Angle is 130°
•Can adjusted up and down adjustment of ±2.5mm
•Left and right adjustment ±2mm
•Front and rear adjustment ±2mm

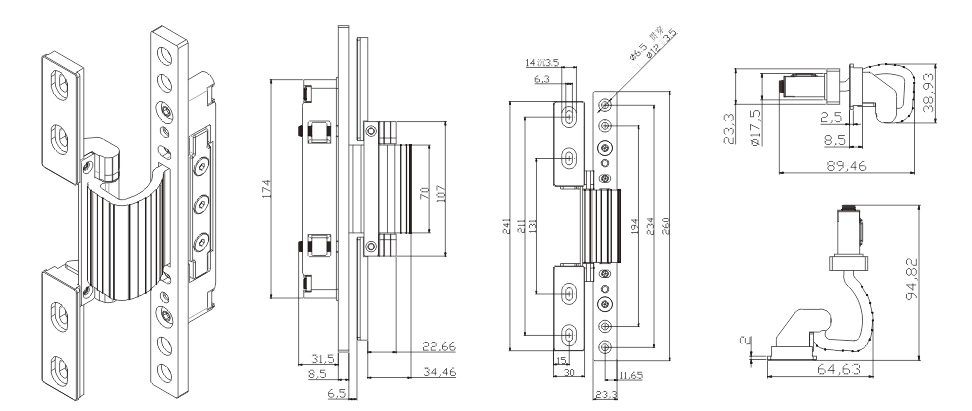

Product data
•Length: 241/260 Width: 30/23.3
•Opening Angle: ≤130°
