If you manufacture, distribute, specify or install doors, you have probably noticed where the market is heading: modern residential, hotel and commercial projects worldwide increasingly ask for doors with no visible hardware. A 3D concealed door hinge hides its entire mechanism inside the door edge and the frame, with three independent axes of on-site adjustment - which is why invisible-door projects spec it. Also known as an invisible hinge or hidden hinge, it has become a go-to choice for minimalist, flush and heavy-duty doors. This guide explains what makes it different and how to match one to your door.

What Is a 3D Concealed Door Hinge?

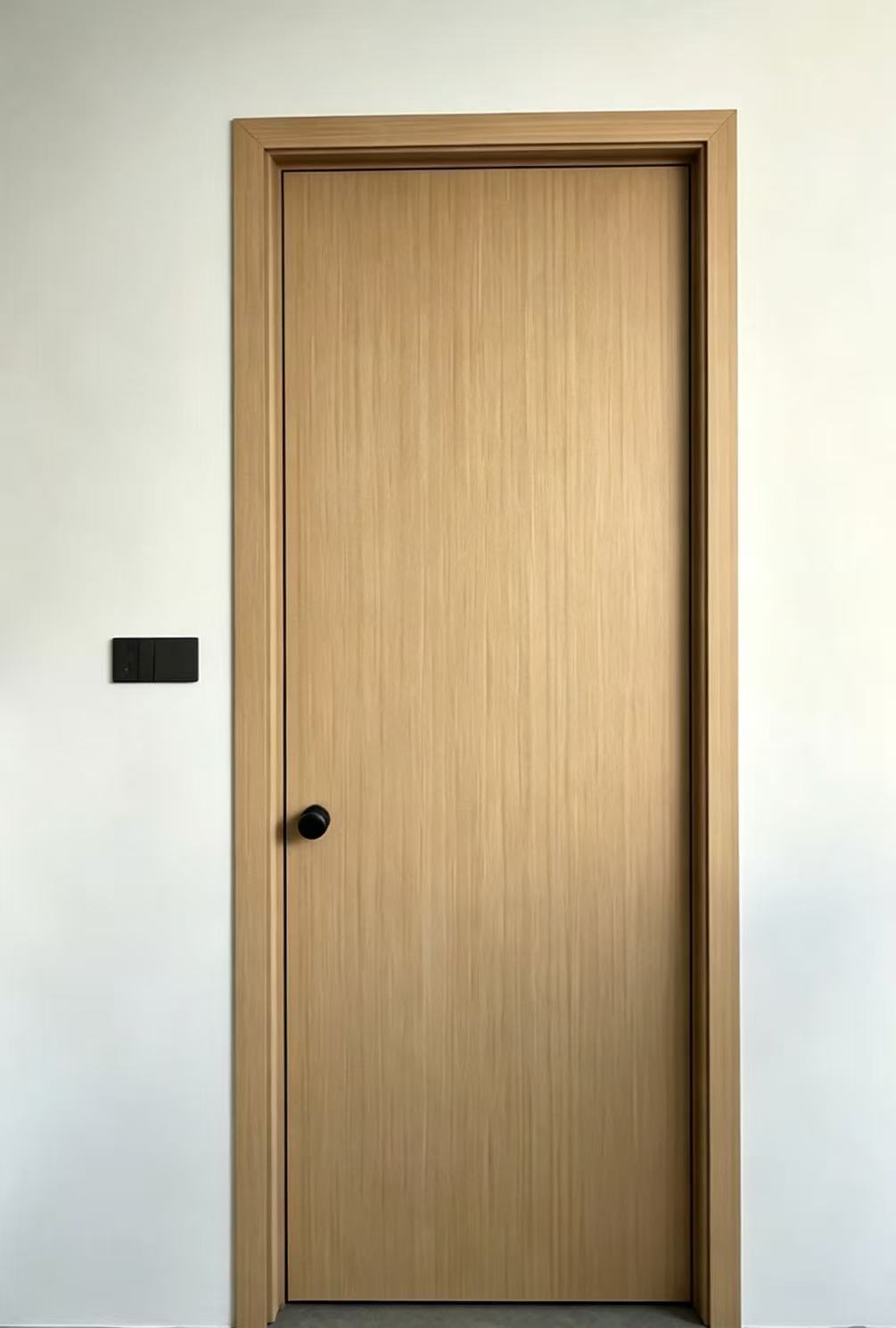

A concealed hinge hides its entire mechanism - leaves, knuckle and pivot - inside the door edge and the frame. When the door is closed, no hardware is visible from either face, leaving a clean, uninterrupted surface.

The "3D" in the name refers to three independent adjustment axes that can be tuned after installation:

· Vertical (up/down) - correct door sag and uneven gaps

· Horizontal (left/right) - align the gap between door and frame

· Depth (front/back) - tune the compression for a tight seal

Adjustment ranges vary by model - the ACH-G40 and ACH-G80, for example, offer ±3 mm vertical, ±2 mm horizontal and ±1 mm depth. This matters more than it sounds. With a traditional butt hinge, alignment is fixed the moment you drill. With a 3D hinge, an installer can fine-tune the door on site in minutes, without shimming or re-drilling.

Why Concealed Hinges Are Now Standard in Modern Projects

There are three main reasons:

1. Aesthetics. A door that looks like part of the wall - no knuckles, no gaps - is the defining feature of minimalist and "invisible door" designs, now expected in premium residential, hotel and office projects.

2. Installation efficiency. 3-axis adjustment means fewer callbacks and less rework, directly lowering installed cost for contractors and door factories.

3. Performance. Hinges can be engineered to handle demanding environments - hot, humid or coastal - through load-rated design and corrosion-resistant materials. In the MSX range, models such as the ACH-MSX01/02 are made of SUS304 stainless steel and support door weights up to 200 kg. Key models including the ACH-G40/G80, DG-03D and XW-18Z open up to 180°.

Key Specifications at a Glance

Tip: match the hinge rating to your door weight and keep a margin - frame thickness, rebate and fixing method change the hinge spec too. When in doubt, send the door type and weight to the manufacturer; a wrong load rating costs more than a message.

How to Choose the Right Concealed Hinge

Three points to confirm first:

1. Load capacity. Compare the door weight against the hinge rating and keep a safety margin. The range covers everything from standard wooden doors (40-80 kg) to heavy-duty commercial doors (up to 200 kg).

2. Compatibility. Tell us your door type - wood, aluminium or system doors. Adjustment range, opening angle and rebate requirements all depend on it.

3. Certification. For commercial and fire-rated projects, request the material certificate, CE marking and fire test reports before you spec.

Browse the full concealed hinge range, or contact our engineering team for selection guidance and a quotation - just let us know your door type and approximate load requirement.

Frequently Asked Questions

Q1. What is a 3D concealed door hinge?

A: A concealed hinge hides its entire mechanism - leaves, knuckle and pivot - inside the door edge and the frame. The "3D" refers to three independent adjustment axes (vertical, horizontal and depth) that the installer can fine-tune on site after the hinge is fixed.

Q2. What is the difference between a concealed hinge, an invisible hinge and a hidden hinge?

A: They are different names for the same product. A concealed door hinge is also known as an invisible hinge or hidden hinge because no hardware is visible when the door is closed.

Q3. Can concealed door hinges support heavy doors?

A: Yes. Load-rated models such as the ACH-MSX01/02 support door weights up to 200 kg, while lightweight series cover 40-80 kg. Always match the hinge rating to your door weight and keep a safety margin.

Q4. Do concealed door hinges open a full 180 degrees?

A: Selected models - including the ACH-G40, ACH-G80, DG-03D and XW-18Z - open up to 180 degrees. Check the spec sheet of each model for the exact opening angle.

Q5. Are concealed hinges suitable for coastal or humid environments?

A: Yes, when specified in the right material. SUS304 stainless steel resists rust and corrosion, which makes it the practical choice for coastal regions, kitchens and hospitals. SUS304 material certificates are available on request for MSX hinges.
